Description
Description:

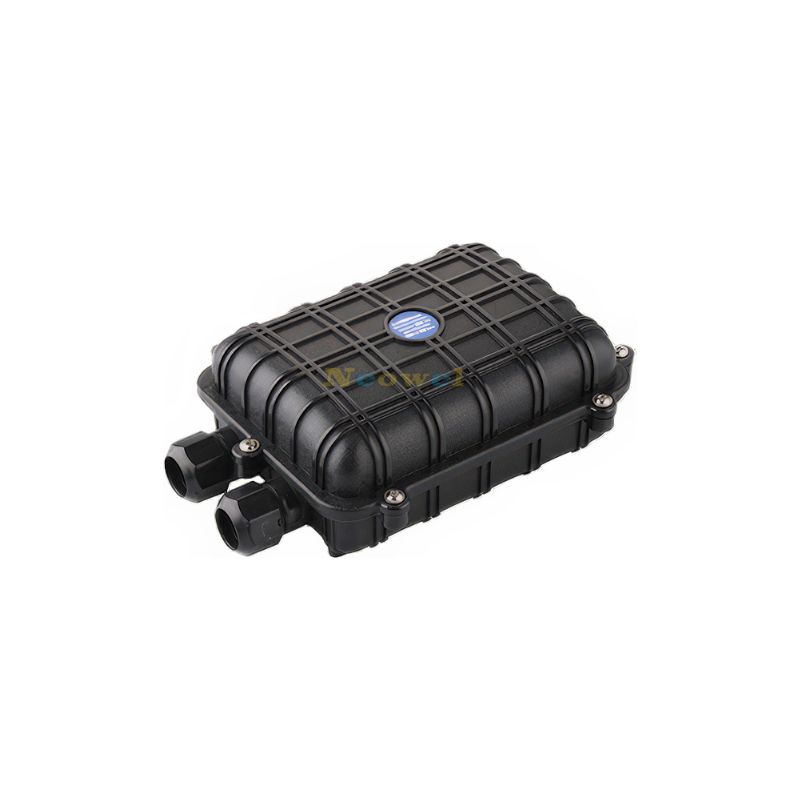

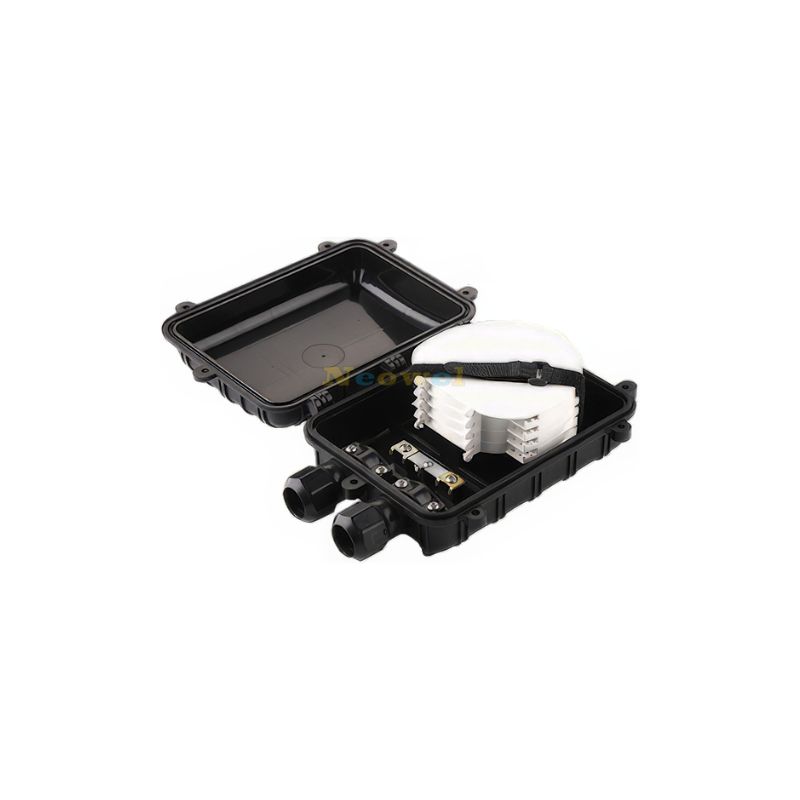

Neowel Optical Fiber Splice Joint Enclosure provides 2~8 fiber cable in-out ports; The products are made of the high quality material and with the mechanical sealing structure filled with the sealing material; The external components and fastening parts are all made of stainless steel; It can be reopened and reused without changing sealing material; It can be used in aerial, duct, and direct buried application.
Feature:
- Material: ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP68.
- Wall-mounting, pole mounting, aerial, buried. etc.
- Ambient temperature ranges from -40 to 65℃
- High mechanical intensity
- Corrosive-resistance
- Anti-thunderstruck
- convenient maintenance
Application:
- Suitable for bunchy fibers
- Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
- FTTH optical fiber distribution
Specification:
| Model | FOSC-H003 |
| Size | 280*200*90mm |
| Material | ABS |
| Capacity | 48 cores |
| Ports | 1 inlet 1 outlet |
