Description

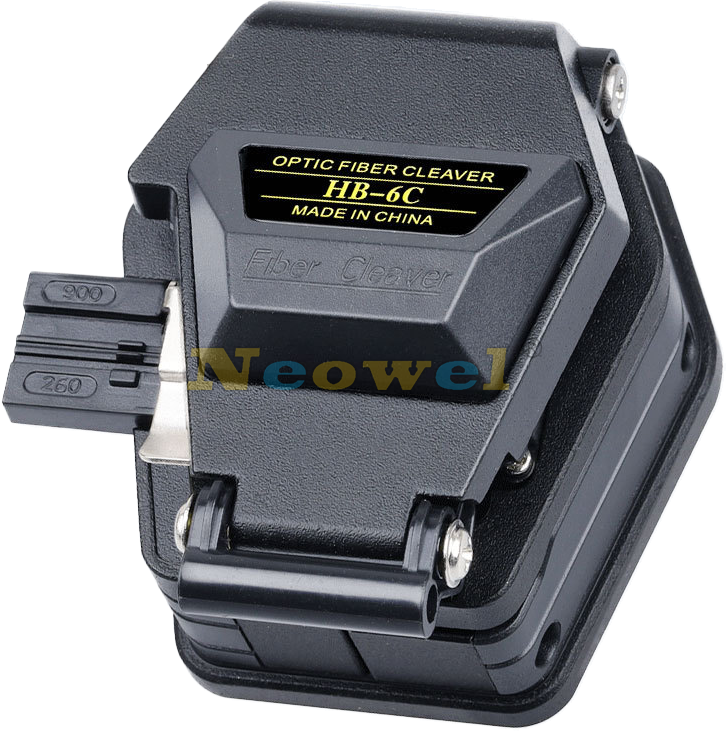

HB-6C high precision cleaver is designed for field use alongside the Sumitomo splicing units.
By using a rotating blade for multiple scoring positions enables a blade life of 50,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting.
Features:
- Provides approximately 50,000 cleaves
- Compact body& light weight
- High Precision Cleaves

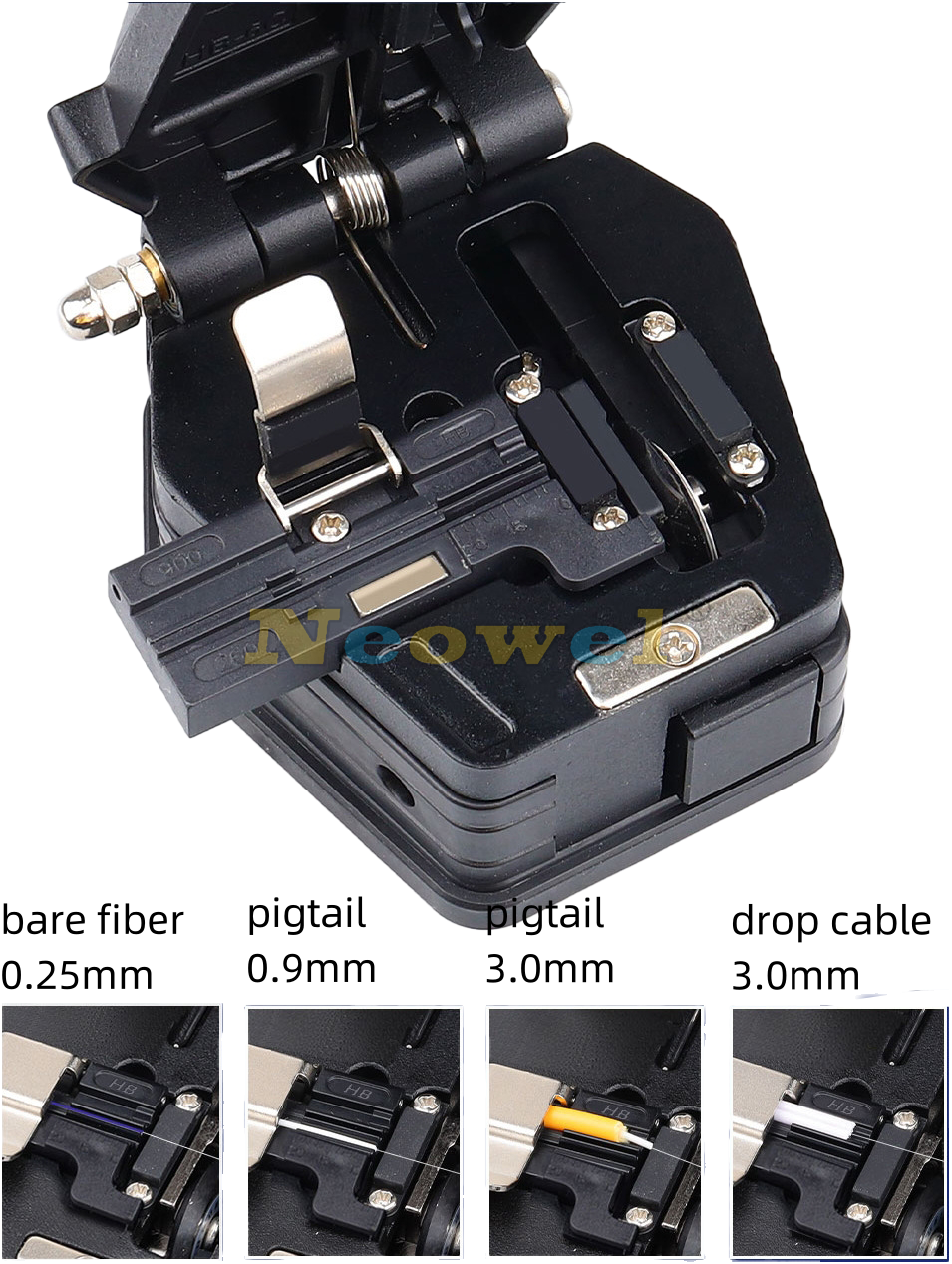

- 3 in one clamp for bare fiber, pigtail and drop cable
- Singlemode or Multimode Use
- 16 Position Rotatable and Replicable Blade
- Accept customized model lables
Specifications:
| Model | HB-6C |
| Applicable fibers | Single-mode or Multi-mode |
| Fiber Diameter | 125um |
| Coating Diameter | 250um,900um,2.0mm, 3.0mm, 2.0*3.0mm |
| Typical Cleave Angle | 0.5 Degrees |
| Cleave Length | 18mm |
| Blade Life Time | 36,000 cleaves (3,000 per blade position) |
| Cleaver Dimensions | 71.3 x 67.2 x 51mm |
| Weight | 300g |
