Description

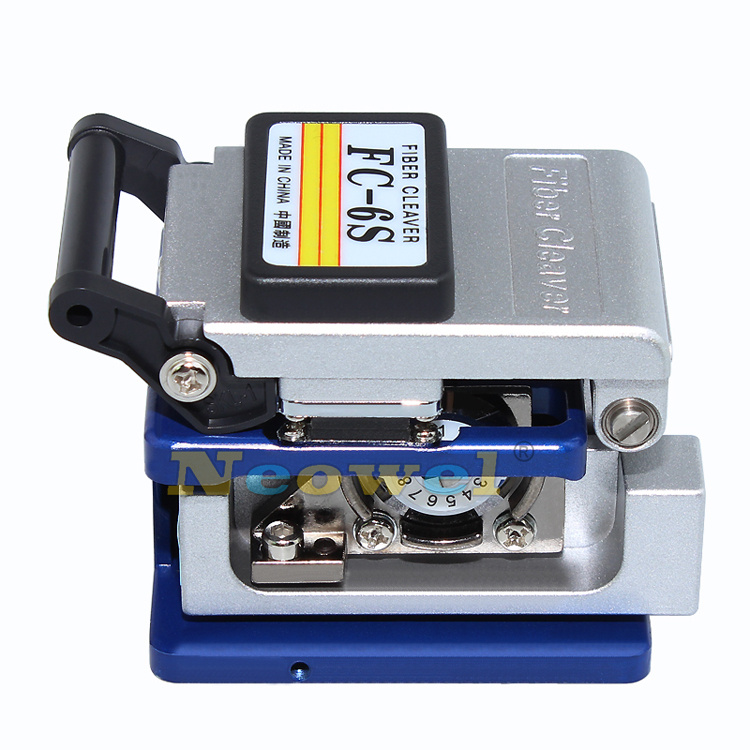

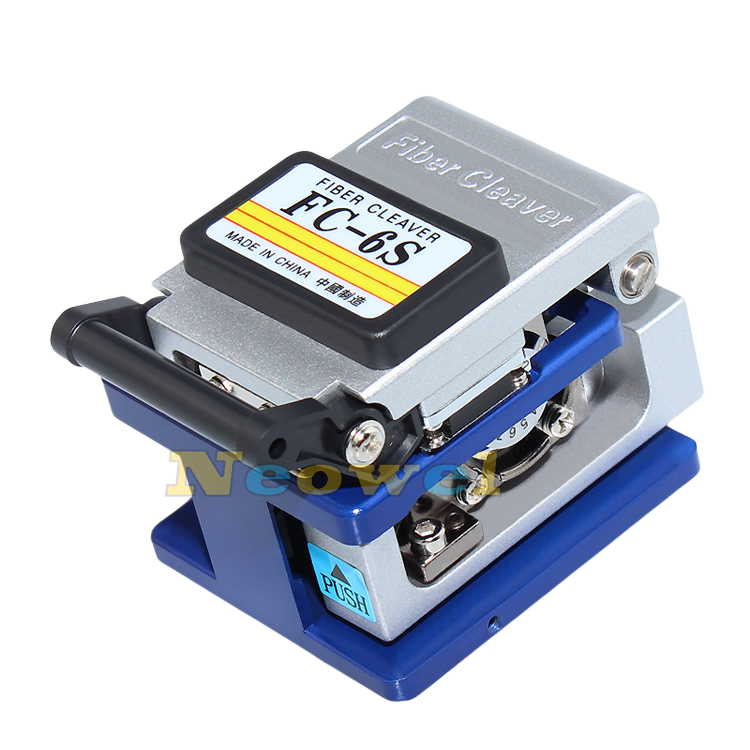

FC-6S high precision cleaver is designed for field use alongside the Sumitomo splicing units.
By using a rotating blade for multiple scoring positions enables a blade life of 36,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting.
Features:
- Provides approximately 36,000 cleaves
- Compact body& light weight
- High Precision Cleaves
- 250um Coated or 900um Buffer fiber
- Singlemode or Multimode Use

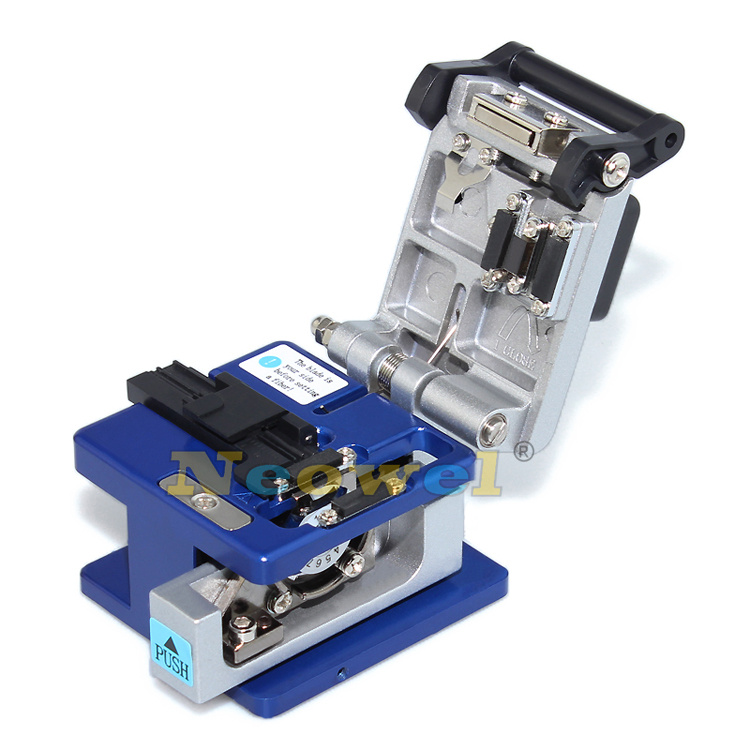

- 12 Position Rotatable and Replicable Blade
- Accept customized model lables
Specifications:
| Model | FC-6S |
| Applicable fibers | Single-mode or Multi-mode |
| Fiber Diameter | 125um |
| Coating Diameter | 250um ~ 900um |
| Typical Cleave Angle | 0.5 Degrees |
| Cleave Length | 9 – 16mm (Single Fiber – 0.25mm Coating) 10 – 16mm (Single Fiber – 0.9mm Coating) |
| Blade Life Time | 36,000 cleaves (3,000 per blade position) |
| Cleaver Dimensions | 63 x 76 x 63mm |
| Weight | 430g |
