Description
Description:

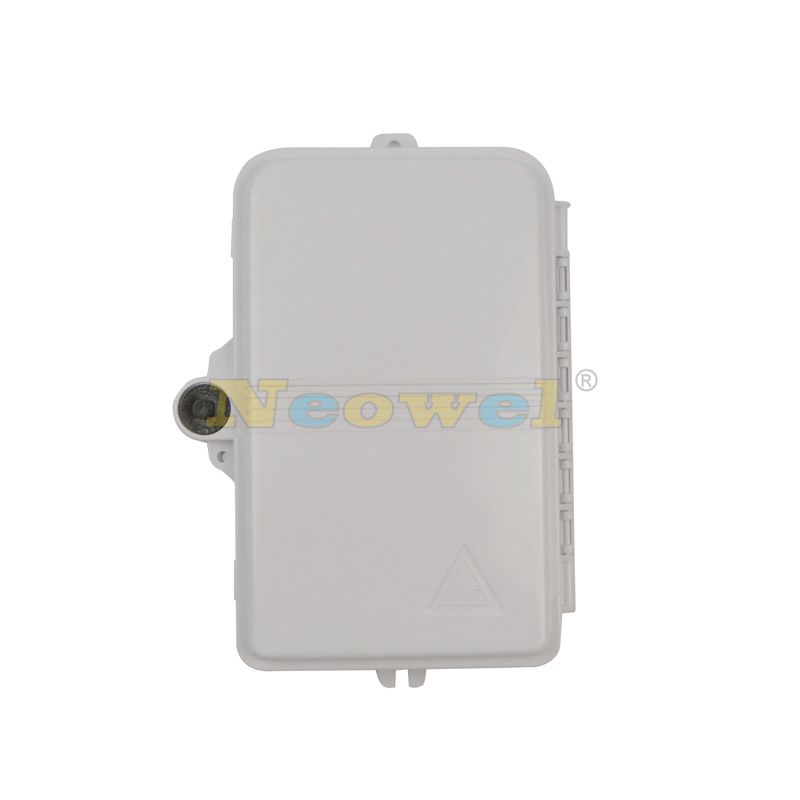

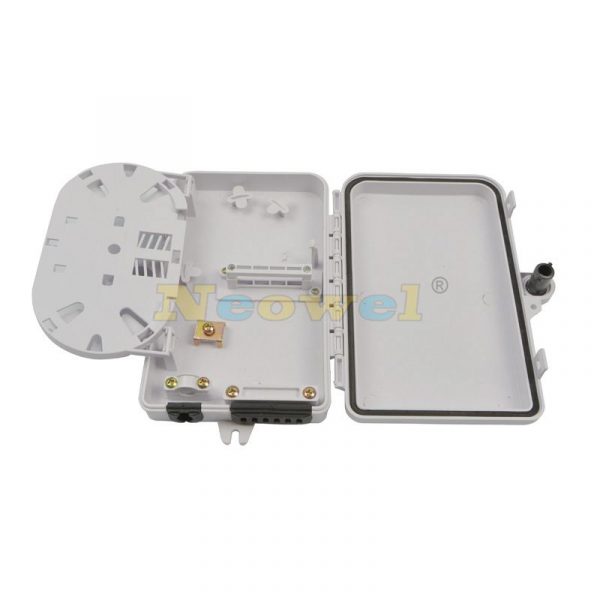

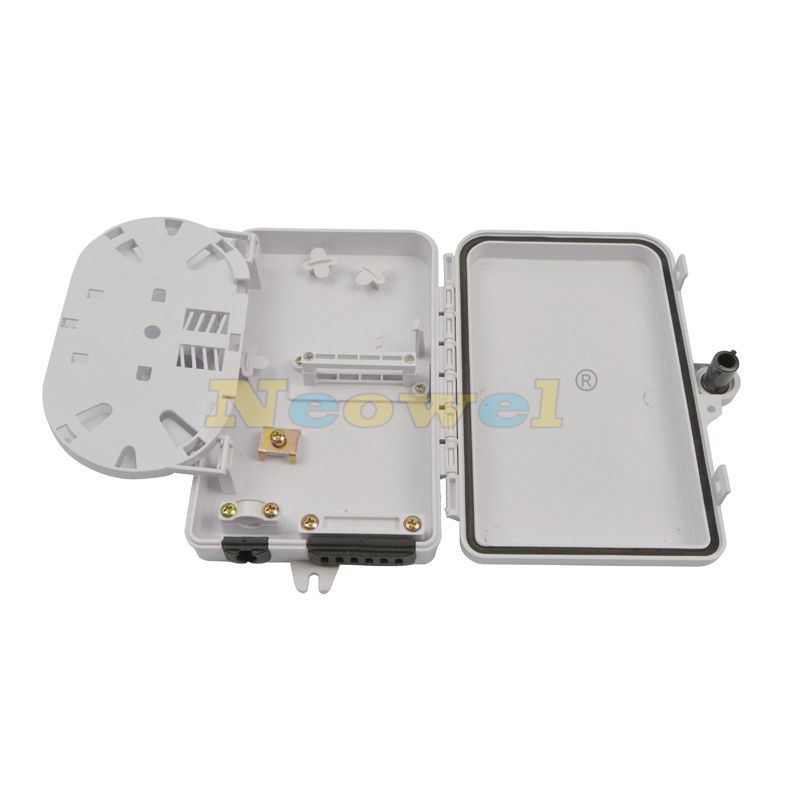

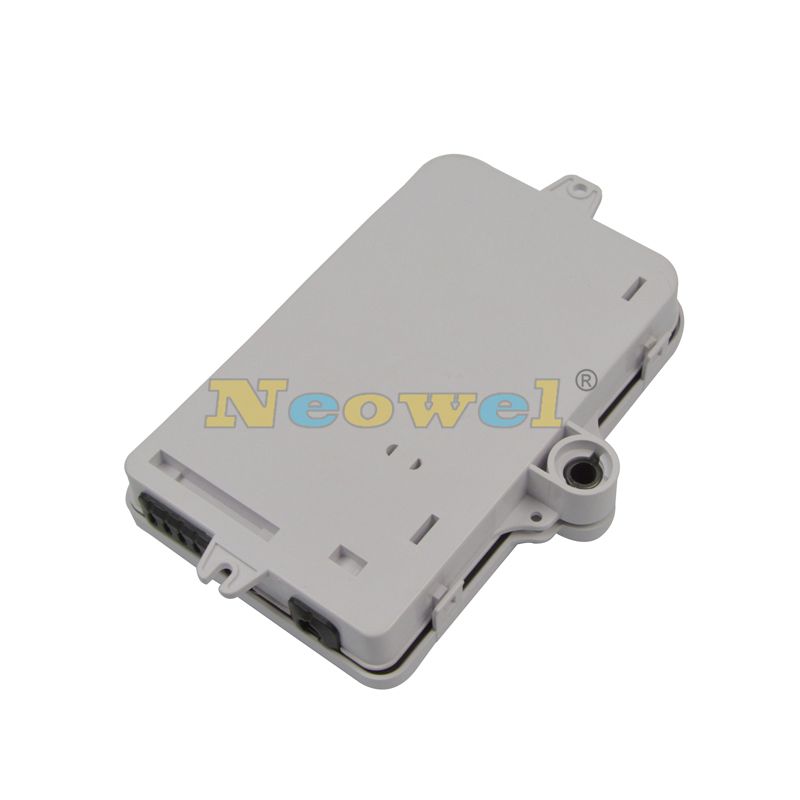

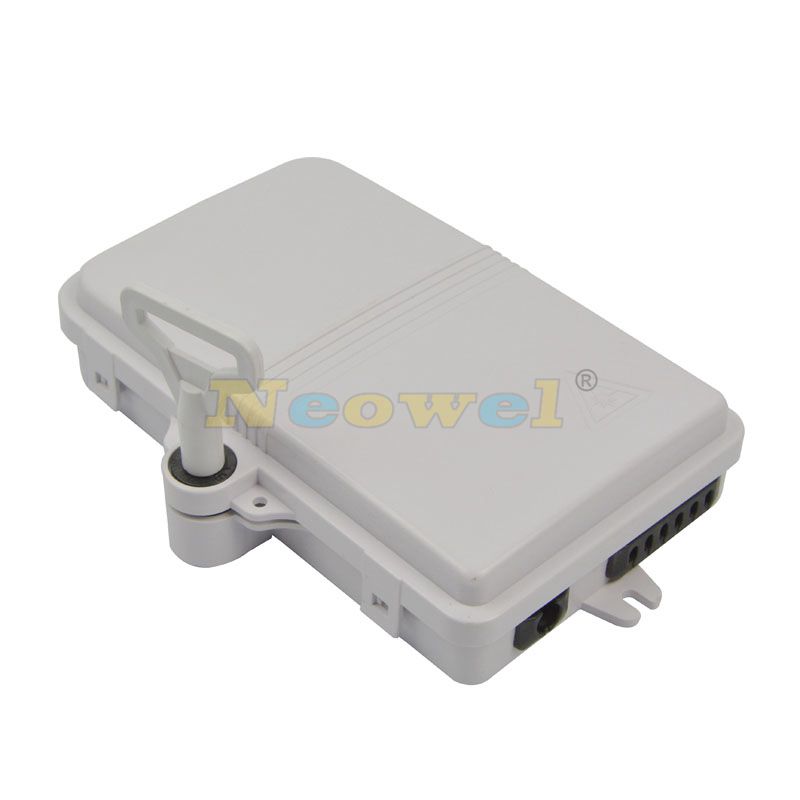

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Feature:
- Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
- Drop Cable,pigtails,patch cords are running through own path without disturbing each other, easy installation for cassette typesplitter, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- Wall-mounting
- Suitable for both indoor and outdoor uses
- 1 cable entrance and 6 drop cable exits; can load one 1*4 mini splitter
Application:
- FTTH
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
Specification:
- Environmental requirement
- Working temperature:-40°C~+85°C
- Relative humidity: ≤85%(+30°C)
- Atmospheric pressure: 70KPa~106Kpa
- Thunder-proof technical data
- The grounding device is isolated with the cabinet, isolation resistance is no less than 1000MΩ/500V (DC); IR≥1000MΩ/500V
- The withstand voltage between grounding device and cabinet is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V
| Model | FDB-6C |
| Size | 205*140*40mm |
| Material | PC+ABS |
| Capacity | 6 cores |
