Description:
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Feature:
- Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP68
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one
- Drop Cable,pigtails,patch cords are running through own path without disturbing each other, easy installation for cassette typesplitter, easy maintenance

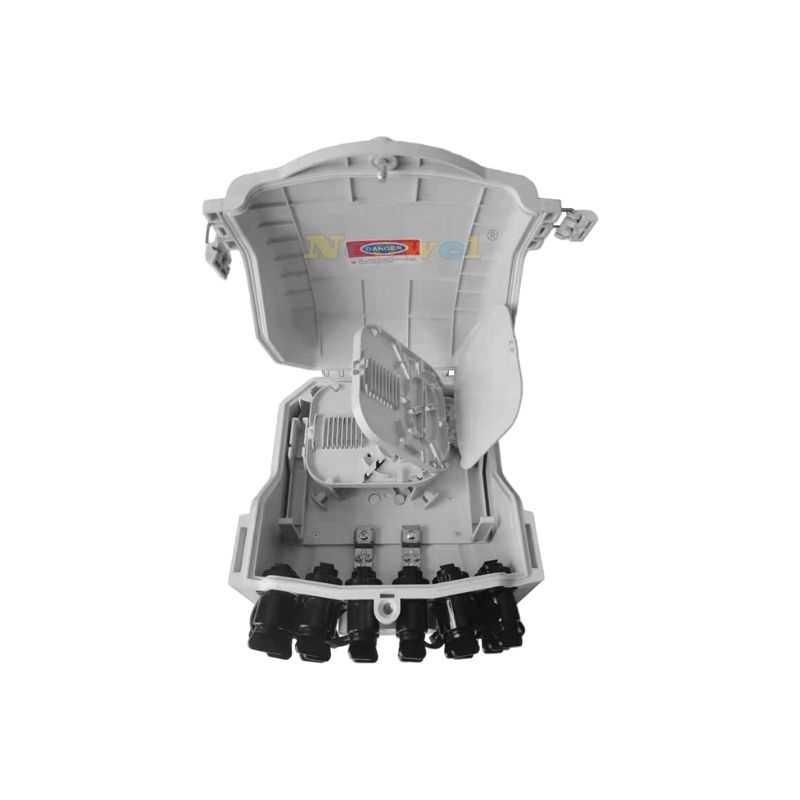

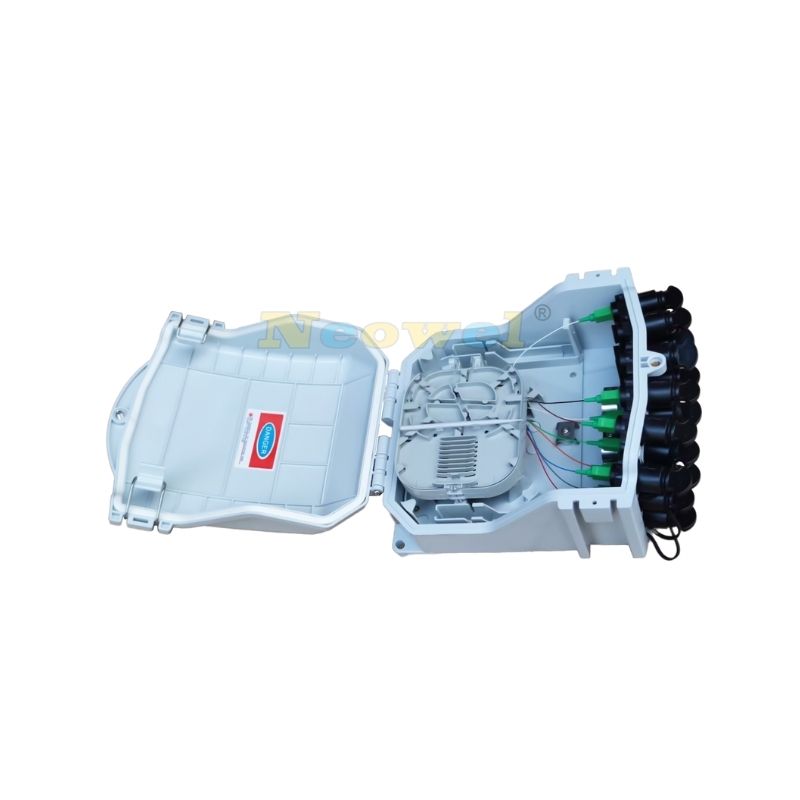

- Integrated with flap-up splice cassette and adapter holder
- 180 degree access with buckled lock structure

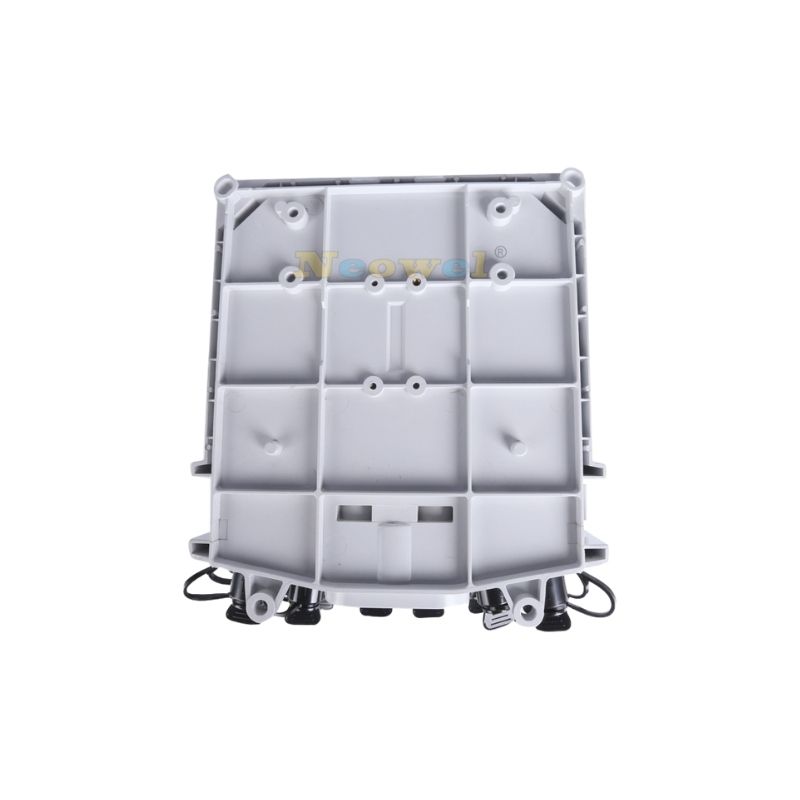

- Wall-mounting and pole mounting
- Suitable for both indoor and outdoor uses
- Suitable for Huawei Pre-connectorized drop cable with reinforced connector
- Maximum 120F splice capacity
- 1 mid-span cable entrance for uncut cable

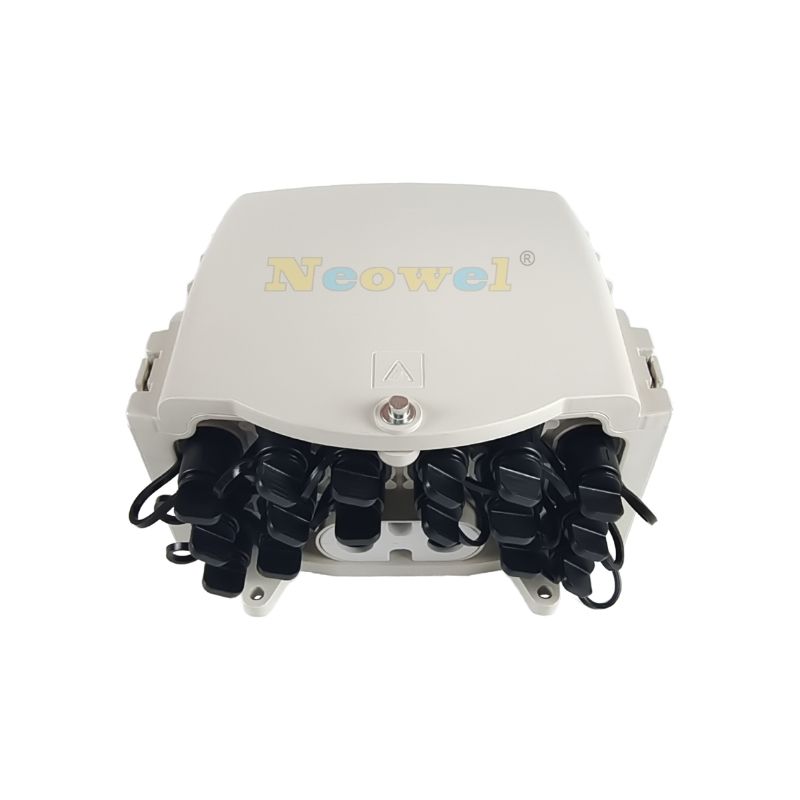

- 16 pcs of pre-installed reinforced water-proof adapter for SC
Application:
- FTTH
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
Specification:
- Environmental requirement
- Working temperature:-40°C~+85°C
- Relative humidity: ≤85%(+30°C)
- Atmospheric pressure: 70KPa~106Kpa
- Thunder-proof technical data
- The grounding device is isolated with the cabinet, isolation resistance is no less than 1000MΩ/500V (DC); IR≥1000MΩ/500V
- The withstand voltage between grounding device and cabinet is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V
| Model | FDB-16F |
| Size | 208*241*117mm |
| Material | PC+ABS |
| Capacity | 16 cores |
